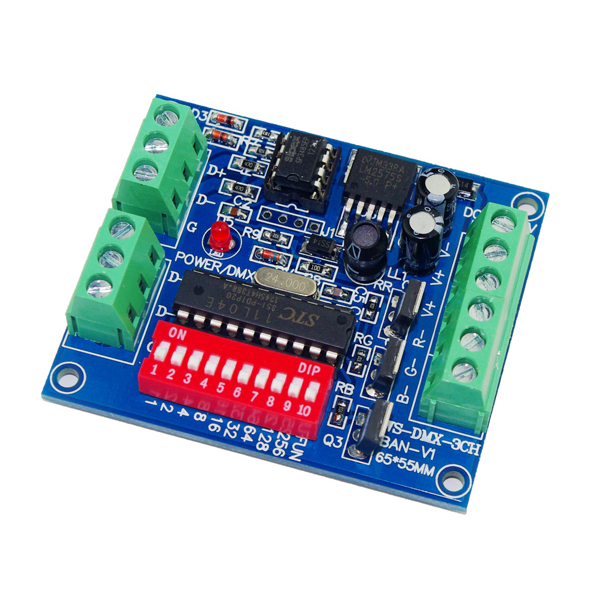

3 channel DMX 512 Controller (circuit board) - Top view
3 channel DMX 512 Controller (circuit board) - Side view
3 channel DMX 512 Controller (circuit board) - Top view
3 channel DMX 512 Controller (circuit board) - Side view

Item number: LCO-1045-01

EAN: 4260587330242

Category: RGB LED Controller

3-channel DMX decoder for controlling our RGB-LEDs, RGB LED strips or modules via DMX-512. The decoder can process the standardized DMX-512 protocol. Three channels (red, green, blue). The power supply of the RGB LEDs and the control cable are connected via screw terminals.

The DMX-512 controller has internal test programs that are selected as well as the DMX address via DIP switches

The DMX signal can be looped through to other devices via the DMX Out.

Show description
Differential price
From 10 piece » 10,99 €
11,99 €

including 19% VAT., plus shipping (Standard)

piece
Available (1 - 4 workdays)

best price

individual service

current goods

For a complete offer write us an E-Mail

Article details
DescriptionCharacteristicsapplication areaincluded in deliveryuser manualRatings

Technical details:

  •   Operating voltage: 5-24V DC
  •   Output current: max. 3A per channel
  •   Length: 65.00mm
  •   Width: 55.00mm
  •   Height: 15.00mm
  •   Working temperature: -20 to + 60 ° C
  •   Input signal: DMX512
  •   Channels: R/G/B/COM+
  •   Brightness levels: 256 levels
  •   DMX512 connection: DMX512 input and output for DMX signals
  •   For installation in a housing (not to be used without a housing)
current voltage:
5 Volt, 12 Volt, 9 Volt, 24 Volt
WEEE-Reg.-Nr. :
DE 87825537
  •   Advertising displays
  •   Control of Christmas lights
  •   AmbiLight
  •   Club lights
  •   Stage light
  •   1 Controller
  user manual
